🔌 Looking for a female 4-pin aviation connector for a vehicle camera, MDVR, or monitor? Understanding the connector type and its compatibility is important when selecting cables for vehicle surveillance systems.
Female aviation connectors are used in compatible vehicle camera connections across buses, trucks, commercial vehicles, and mobile surveillance systems.

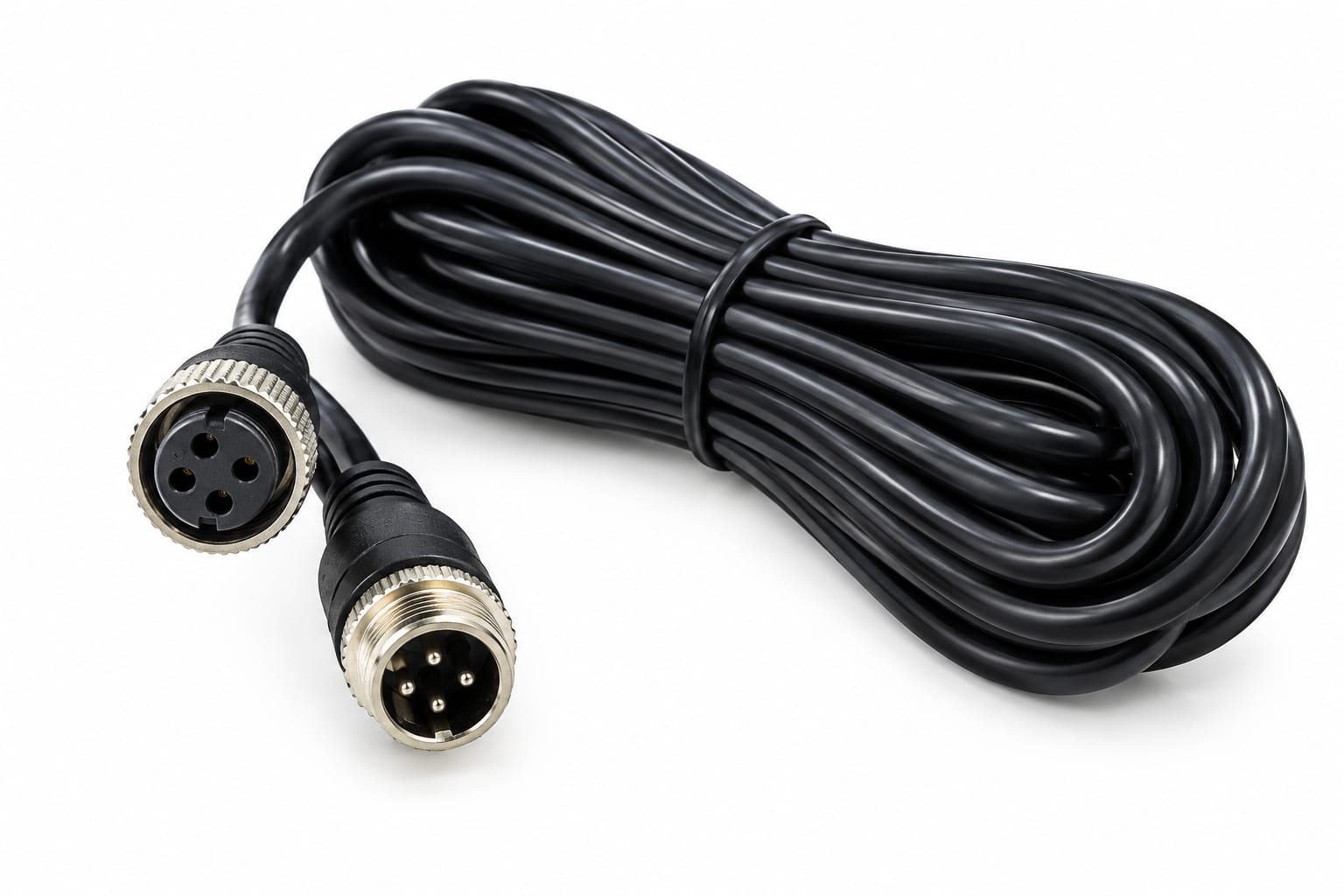

🔍 What Is a Female 4-Pin Aviation Connector?
A female 4-pin aviation connector is a circular connector with four contact positions designed to mate with a compatible male connector. It provides a connection between compatible cables or electronic devices.
Depending on the cable design and wiring, a 4-pin connection may support video, audio, power, and ground. However, the exact function of each pin depends on the equipment and connector configuration.
🚛 Where Is a Female Aviation Connector Used?
📹 1. MDVR & Mobile DVR Systems
Used in compatible mobile recording setups to connect vehicle cameras with an MDVR or associated cable.
🚌 2. Bus Camera Systems
Supports camera connections in compatible passenger bus and school bus surveillance installations.
🚚 3. Truck & Commercial Vehicle Cameras
Can be used in suitable vehicle monitoring systems where aviation-style connectors are specified.
↩️ 4. Reverse Camera Systems
May connect compatible rear-view camera cables to the relevant vehicle display or recording equipment.
🖥️ 5. TFT & Dashboard Monitors
Used in certain monitor and vehicle camera setups when the connector, signal, and pin configuration match.
⚙️ Female vs Male 4-Pin Aviation Connector
The main difference is the connector interface:
Female connector: Contains receptacle contacts designed to accept the matching male connector.
Male connector: Has corresponding contacts designed to fit the compatible female connector.
Both sides must match in connector design and electrical configuration. The number of pins alone does not guarantee compatibility.
💡 How to Choose the Right Female 4-Pin Connector
Before purchasing a female 4-pin aviation cable or connector, check:
🔹 Pin count and pinout: Confirm the four-pin wiring arrangement.
🔹 Connector size and design: Ensure it mates correctly with the male connector.
🔹 Device compatibility: Verify support for your camera, MDVR, or monitor.
🔹 Cable length: Select the appropriate length for your installation.
🔹 Electrical and signal requirements: Confirm the supported power and video connections.
🔹 Installation environment: Consider vehicle vibration, routing, and moisture exposure.
⚠️ Important: Two connectors may look similar but have different pinouts. Always confirm the product specifications before connecting the equipment.
🔗 Explore TVS Security Products
Looking for vehicle surveillance and monitoring solutions? Explore TVS Security's product range and learn more about its security solutions.
🌐 Website: https://www.tvssecurity.com/index
📦 Products: https://www.tvssecurity.com/products
📸 Instagram: https://www.instagram.com/tvssecurity?stkn=MTJzbzVkdnZwbG94dQ==
▶️ YouTube: https://www.youtube.com/@tvs.aisecurity
❓ Frequently Asked Questions
1. What is a female 4-pin aviation connector?
It is a circular four-contact connector designed to connect with a compatible male aviation connector.
2. Where is a female 4-pin aviation connector used?
It is used in compatible vehicle camera cables, MDVR setups, monitors, and commercial vehicle surveillance installations.
3. Can a female 4-pin connector work with any MDVR?
No. The connector design, pinout, wiring, and signal requirements must match the MDVR and connected camera.
4. Is a female aviation connector the same as a female 4-pin cable?
Not exactly. The connector is the connecting component, while a cable is an assembly that may have a female connector on one or both ends.
✅ Conclusion
A female 4-pin aviation connector is an important connection component in compatible vehicle camera and mobile surveillance systems. Checking the connector design, pin configuration, and equipment requirements helps you choose the correct component for your application.
